Torq Unloc Kit; Prevents Slippage; Prevents High Oil Temperatures;

---

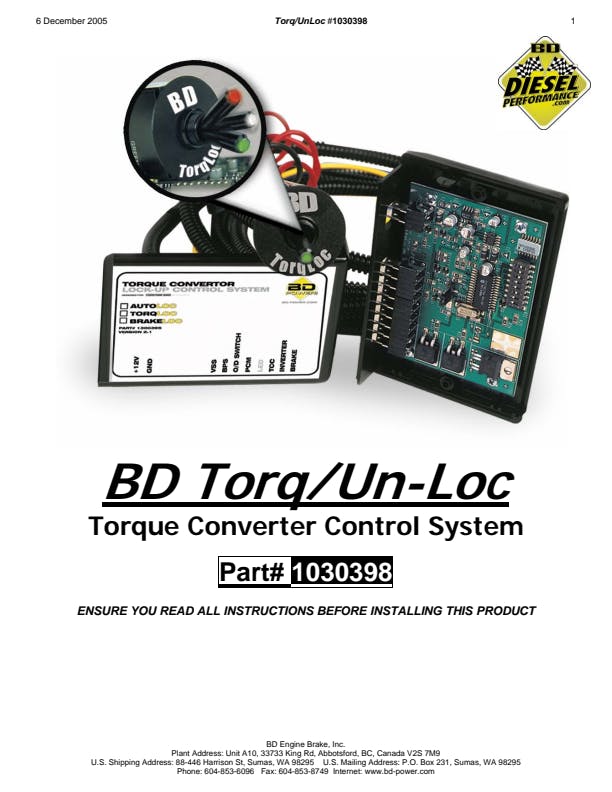

Command the torque converter to stay locked, stay unlocked, or revert to OEM settings with the BD TorqLoc. Flip the toggle switch to position one, and the lock-up clutch is engaged, so transmission temperature remains low and the exhaust brake can work with 100-percent effectiveness (this is a manual setting and should only be selected under light load/light power conditions, such as highway driving). Position two reverts back to stock function, or can be wired to unlock the torque converter. Position three acts as an AutoLoc by commanding lock-up only when the exhaust brake is engaged - perfect setting for every day driving in all situations. Additionally, the TorqLoc has an Overdrive inverter option which allows the transmission to start out in Drive which will prevent upshift into the Overdrive gear - great for those who live in city/urban areas. Also, if you have a BD Valve Body with the second gear lock-up capability, the lock-up can be set to hold until 5-10 mph.Also available is the Torq/UnLoc which acts the same as the TorqLoc but in the third position the converter is prevented from locking up.

• Prevent The ECM From Activating The Lock-Up Clutch
• Maintains Lock-Up When The Exhaust Brake Is Activated
• Ensures 100% Retarding Force Is Being Transferred
• Prevents Slippage and Subsequent High Oil Temps
• 12 Months or 24000 Mile Warranty

---

Information:

Has Three Position Switch

---

Application Summary:

Year	Make/Model
1994-1998	Chevrolet C1500
1992-2000	Chevrolet C2500
1992-2000	Chevrolet C3500
1994-1998	Chevrolet K1500
1992-2000	Chevrolet K2500
1992-2000	Chevrolet K3500
1994-2004	Dodge Ram 2500
1994-2004	Dodge Ram 3500
1994-1997	GMC C1500
1992-2000	GMC C2500
1992-2000	GMC C3500
1994-1998	GMC K1500
1992-2000	GMC K2500
1992-2000	GMC K3500
